Overview

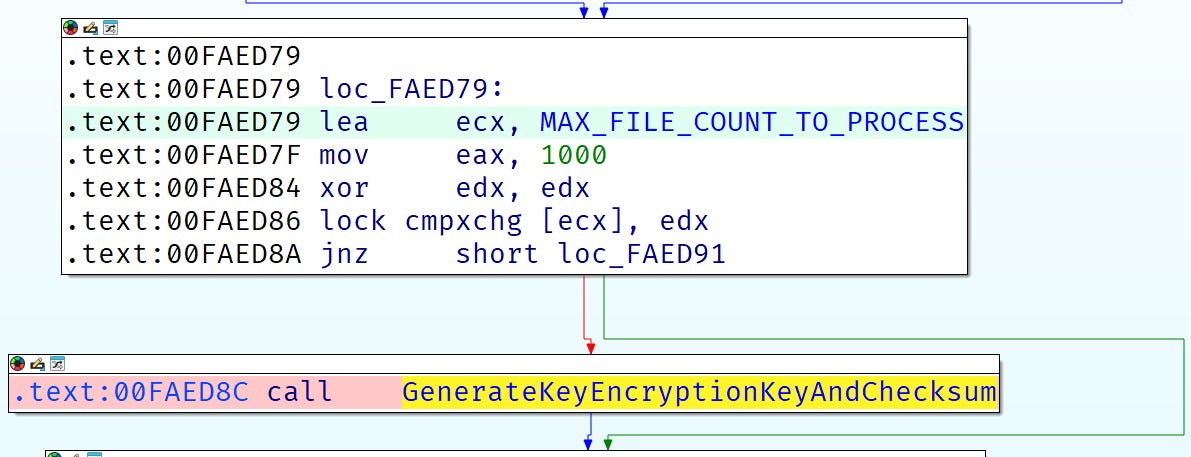

This post contains my analysis of various components of Lockbit 3.0. It mainly covers various anti-analysis and anti-debugging capabilities built in, multiple checks conducted before encryption, and how the configuration is stored within the sample. This analysis does not go into depth on the encryption mechanism used in Lockbit 3.0.
Anti-Analysis
Password Prompt
When the password option is enabled for Lockbit, a password string must be passed to -pass in order to decrypt the .text contents of Lockbit.

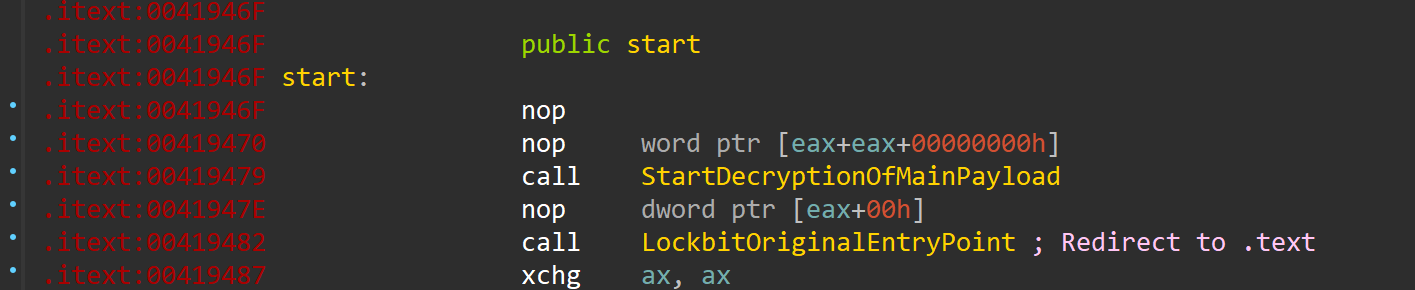

When the password option is enabled the entry point is directed to the .itext section which contains a function to decrypt the .text and redirect the control flow after it has been decrypted.
API Hashing
When Lockbit is first executed, it will aim to resolve a API function call table from a list of API hashes which will be used throughout the lifetime of the execution.

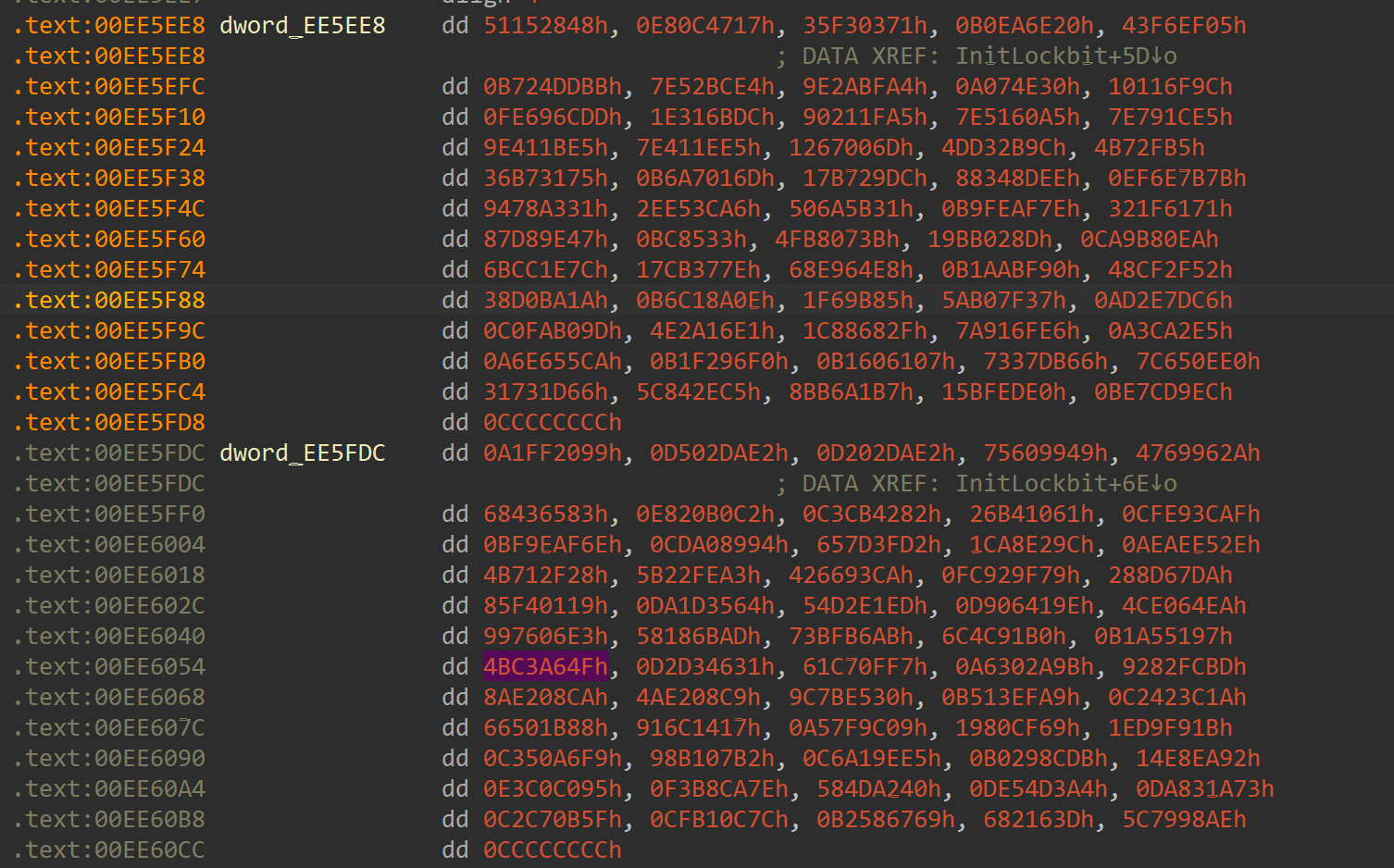

Within the .text section there are multiple API hash tables. The first hash will always refer to the DLL followed by a list of API hashes which end with a 0xCCCCCCCC.
Lockbit will first invoke multiple functions that loop over each table and resolve each API hash to their corresponding function.
The function responsible for populating the function tables will loop over each entry in the API hash table, for each API hash it will resolve to the corresponding pointer to the function. After, it will allocate a buffer on the heap where a trampoline function will be constructed to direct the caller to the resolved function.

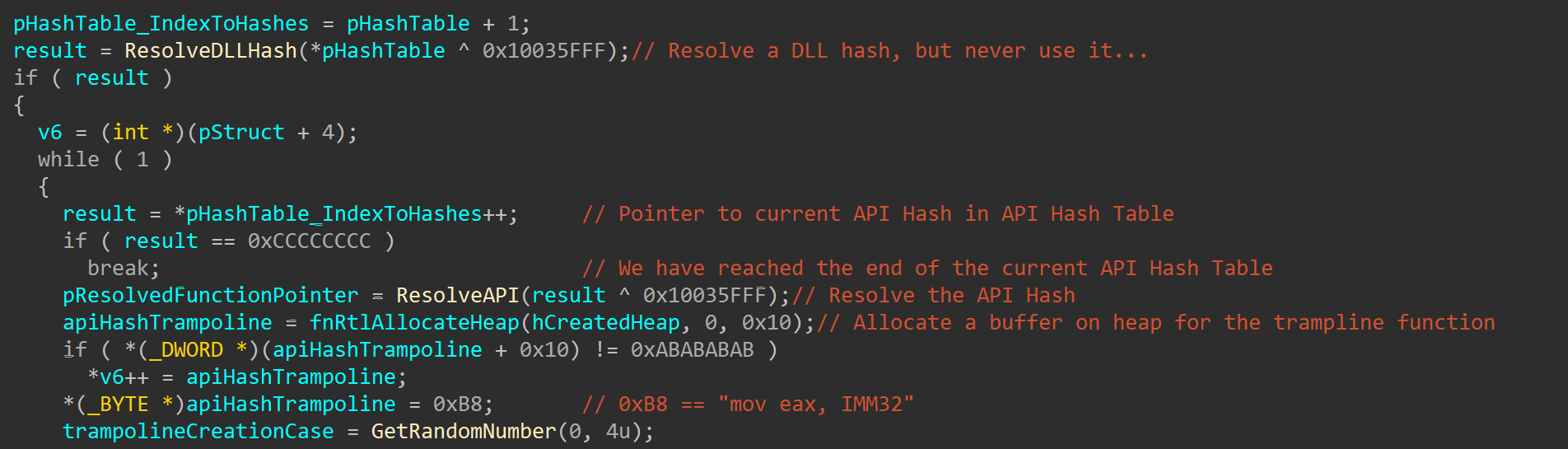

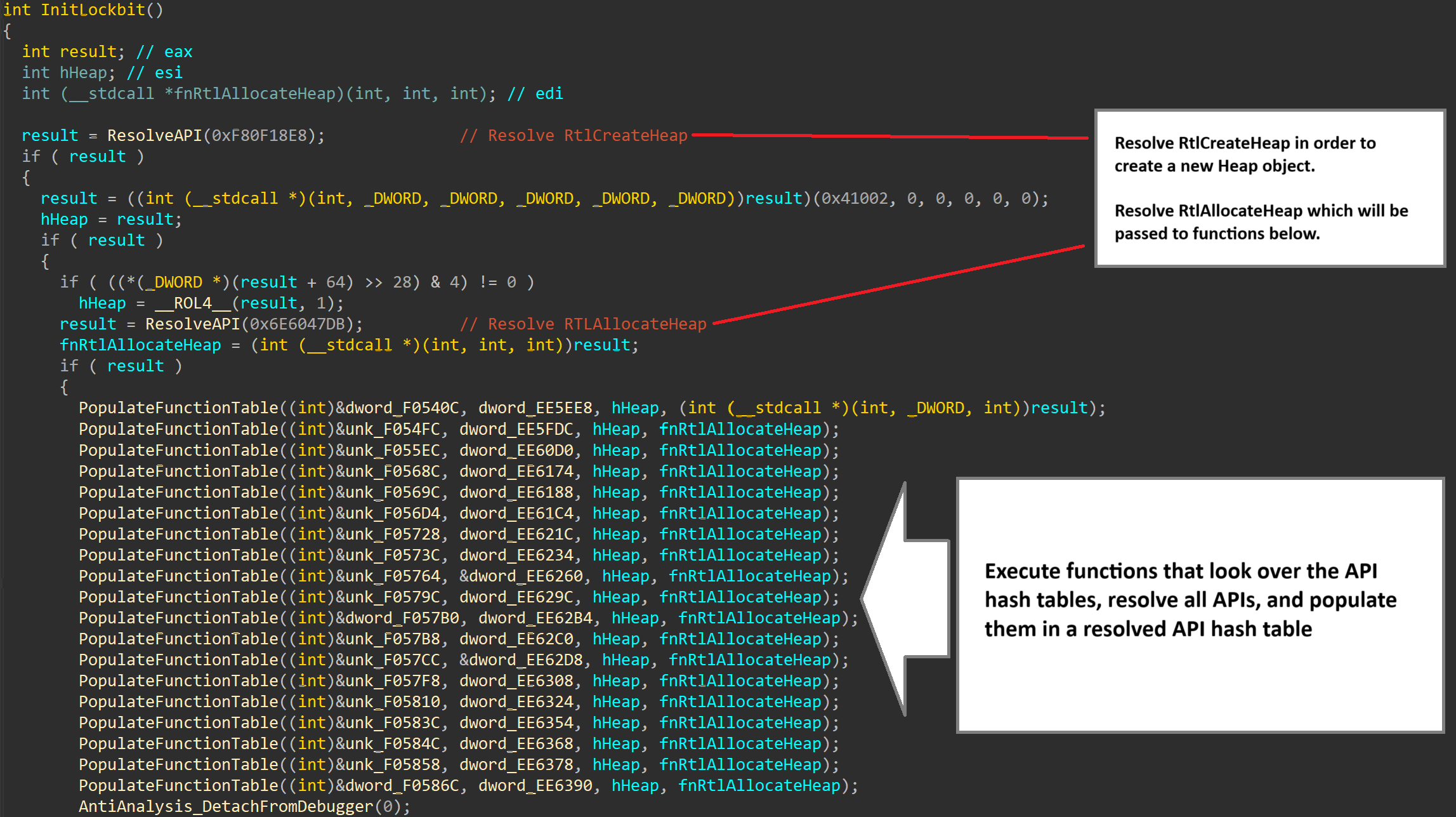

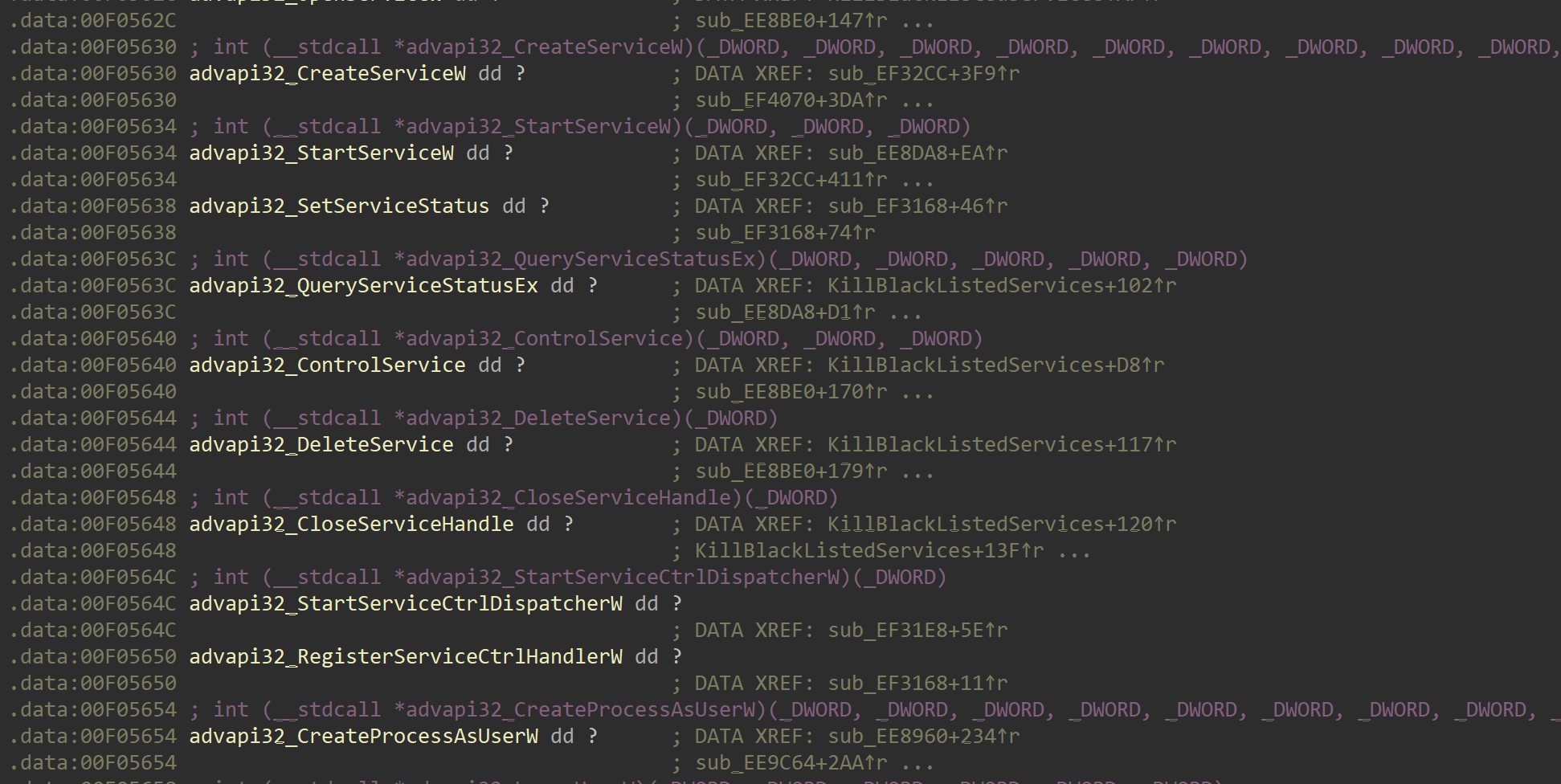

After the API hash is resolved and we have a function pointer to the desired function, a trampoline function will be constructed which will be responsible for calling this function.

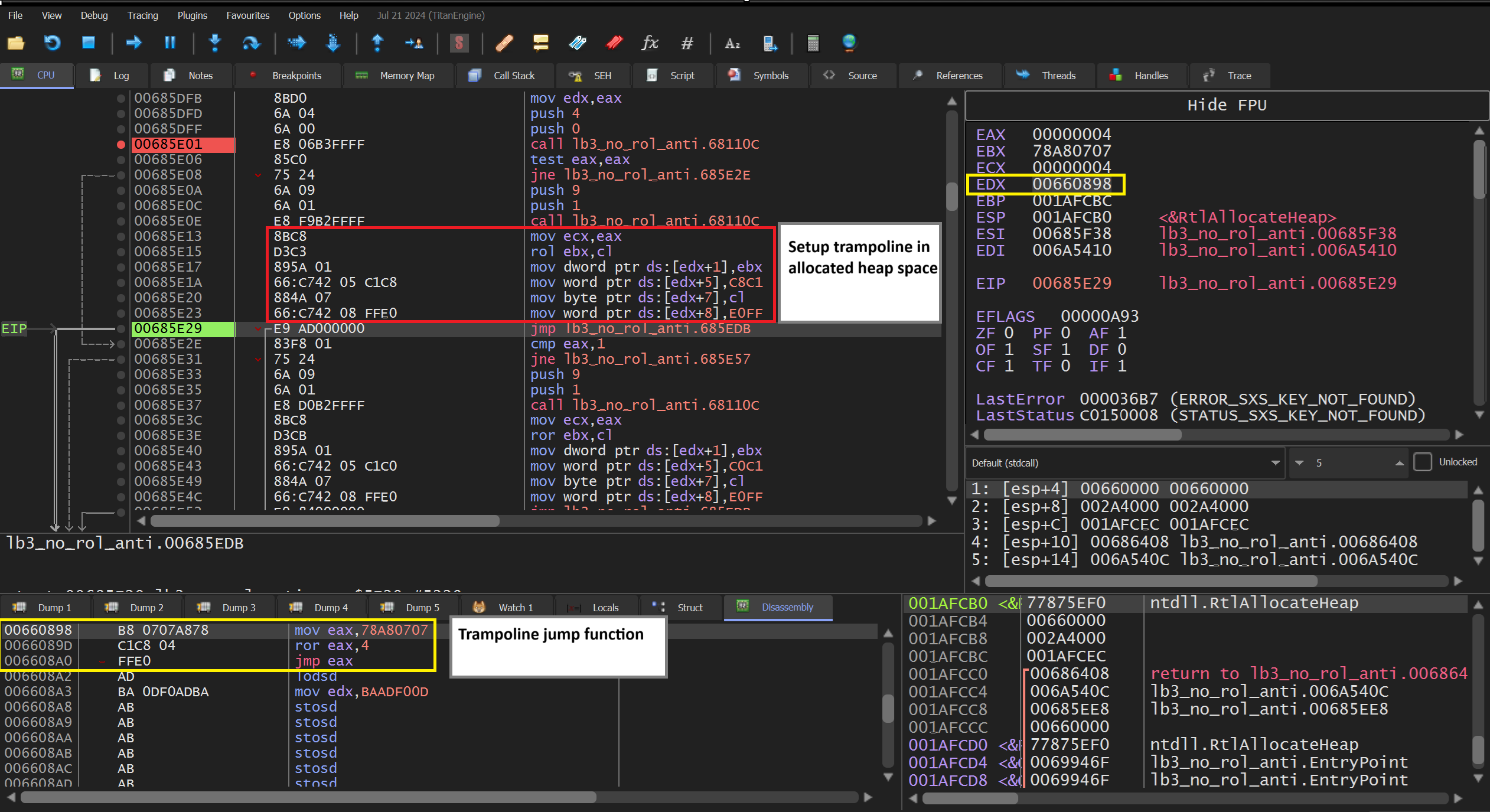

The following shows the construction of a trampoline function, note that the pointer to the function is always encoded when written to the buffer. This makes it difficult to understand what the function points to and can impact the ability to fix the function table if dumping from memory.

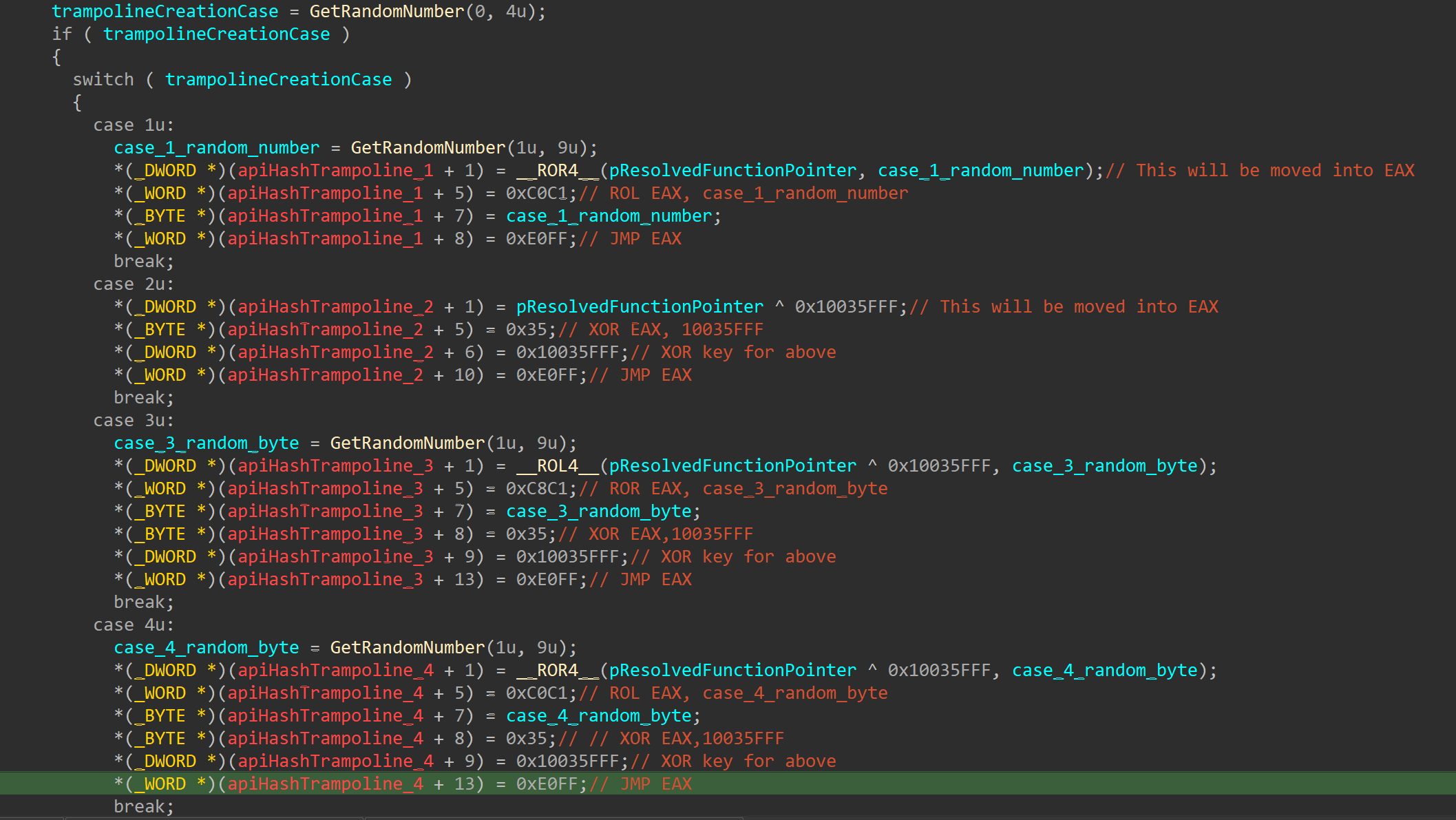

There are 5 different trampoline functions that an be constructed for any given function, which one is used is decided by a random number that is generated. They all provide the same result and differ only in how they encode the pointer to the function.
EncodedAPIHash = ROR(RESOLVED_API_FUNCTION_PTR, RandomByte)
mov eax, EncodedAPIHash
rol eax, RandomByte
jmp eaxAPI Hash Trampoline Case 1
EncodedAPIHash = XOR(RESOLVED_API_FUNCTION_PTR, 0x10035FFF)
mov eax, EncodedAPIHash
xor eax, 0x10035FFF
jmp eaxAPI Hash Trampoline Case 2
EncodedAPIHash = ROL(XOR(RESOLVED_API_FUNCTION_PTR, 0x10035FFF), RandomByte)
mov eax, EncodedAPIHash
ror eax, RandomByte
xor eax, EncodedAPIHash
jmp eaxAPI Hash Trampoline Case 3
EncodedAPIHash = ROR(XOR(RESOLVED_API_FUNCTION_PTR, 0x10035FFF), RandomByte)
mov eax, EncodedAPIHash
rol eax, RandomByte
xor eax, EncodedAPIHash
jmp eaxAPI Hash Trampoline Case 4
EncodedAPIHash = ROL(RESOLVED_API_FUNCTION_PTR, RandomByte)
mov eax, EncodedAPIHash
ror eax, RandomByte
jmp eaxAPI Hash Trampoline Case 5
In the end there is a table where each trampoline function will be stored. Rather than invoking these functions directly, they will always go through the trampoline function.
Stack Strings

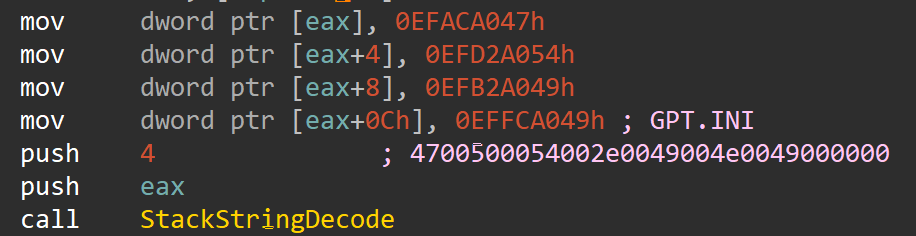

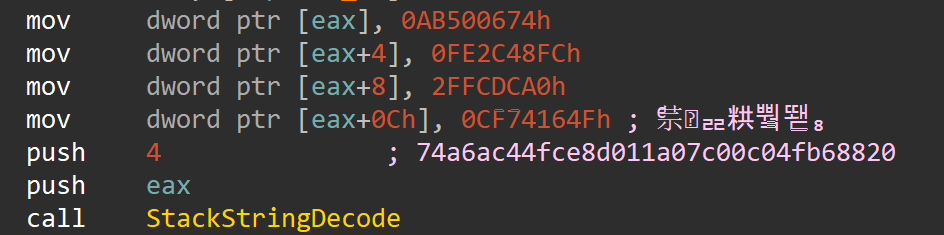

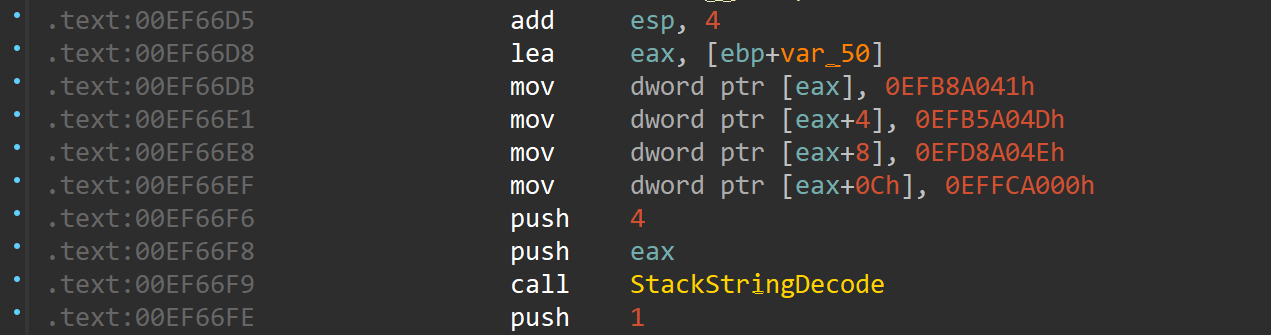

Stack strings are used to encode strings and other data in order to prevent it from being identified through static means. The function responsible for decoding the stack strings will take a pointer to the beginning of the stack string buffer, and the number of encoded DWORD sized entries.

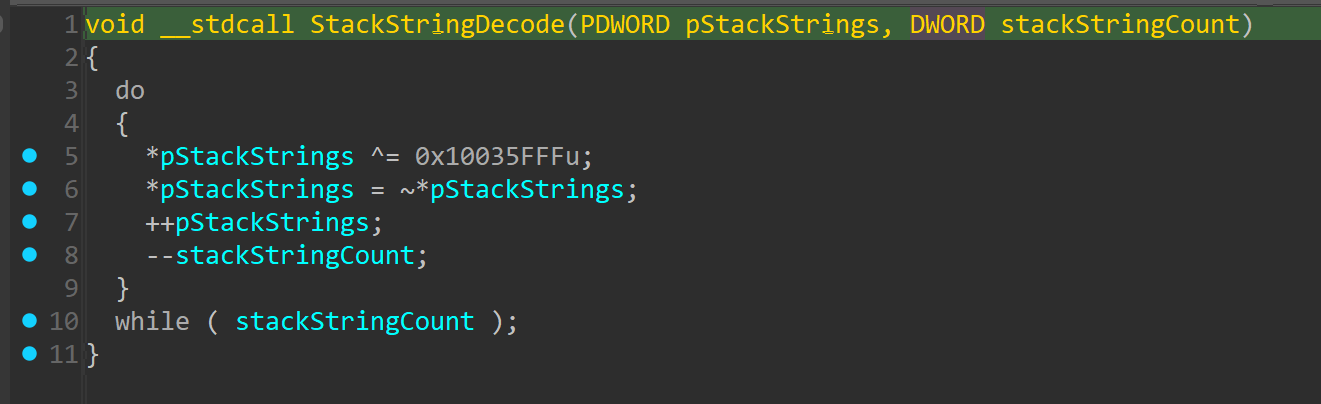

For each DWORD in the stack string it will be decoded by XOR'ing with a hardcoded value and then inverting all the bytes.
The following IDAPython script was used in order to find all stack strings, resolve them, and leave a comment indicating the string.
import idc
import idautils
def flip_bytearray(bytearray_data):
size = len(bytearray_data)
flipped = bytearray(size)
for i, byte in enumerate(bytearray_data):
flipped[size - 1] = bytearray_data[i]
size = size - 1
return flipped
def invert_bytearrays(bytearray_data):
for i, byte in enumerate(bytearray_data):
if bytearray_data[i] == 0xFF:
bytearray_data[i] = 0x00
continue
bytearray_data[i] = ~bytearray_data[i] & 0xFF
return bytearray_data
def xor_bytearrays(bytearray1, bytearray2):
if len(bytearray1) != len(bytearray2):
return
for i, byte in enumerate(bytearray1):
bytearray1[i] = bytearray1[i] ^ bytearray2[i]
return bytearray1
def invert_hex_dword(hex_value):
# Ensure the input is a 32-bit unsigned integer (DWORD)
dword = hex_value & 0xFFFFFFFF # Mask to 32 bits
inverted = ~dword & 0xFFFFFFFF # Invert and mask to 32 bits
return inverted
def decode_string(stack_string_encoded):
xor_key = bytearray.fromhex("10035FFF")
try:
encoded_string = bytearray.fromhex(stack_string_encoded.replace("0x",""))
except ValueError:
# Some cases the encoded string will be 4 bytes, but the last byte will only contain one value
# In this case we add the trailing 0 that IDA omits
encoded_string = bytearray.fromhex(stack_string_encoded.replace("0x","") + "0")
decoded_string = xor_bytearrays(encoded_string, xor_key)
decoded_string = invert_bytearrays(decoded_string)
decoded_string = flip_bytearray(decoded_string)
return decoded_string
def get_stack_decode_parameters(stack_decode_function_ea):
'''
We always pass two paramters to DecodeStackString, this means
if we go back 0xA bytes we will hit the DWORD array containing stack strings.
Going back 0x3 and taking the 1'th element will give us the size of the stack array.
.text:00416E1C C7 40 08 6C A0 FC EF mov dword ptr [eax+8], 0EFFCA06Ch
.text:00416E23 6A 03 push 3
.text:00416E25 50 push eax
.text:00416E26 E8 15 A4 FE FF call DecodeStackString
'''
stack_string_array = stack_decode_func - 0xA
stack_string_array_size = idc.get_bytes(stack_decode_func - 0x3, 0x2, 0)[1]
return (stack_string_array, stack_string_array_size)
def get_list_encoded_string_values(stack_string_array_ea, stack_string_array_size):
# Save inital value
stack_string_array_inital_ea = stack_string_array_ea
stack_string_array_inital_ea_next = idc.next_head(stack_string_array_inital_ea, 0xFFFFFFFFFFFFFFFF)
# Move the stack string array ea to before it starts for the loop
stack_string_array_ea = idc.next_head(stack_string_array_ea, 0xFFFFFFFFFFFFFFFF)
decoded_string_buffer = bytearray(0)
for i in range(0, stack_string_array_size):
# Set the stack string array ea to next stack string
stack_string_array_ea = idc.prev_head(stack_string_array_ea, 0)
if print_insn_mnem(stack_string_array_ea) != "mov":
continue
# Extract the stack string from the assembly line
# Example: mov dword ptr [eax+4], 0EF9BA02Dh
stack_string_encoded = get_operand_value(stack_string_array_ea, 1)
stack_string_encoded = hex(stack_string_encoded & 0x00000000FFFFFFFF)
decoded_string = decode_string(stack_string_encoded)
decoded_string_buffer = decoded_string + decoded_string_buffer
print("[+] Decoded Bytes: " + decoded_string_buffer.hex())
try:
print("[+] Decoded String: " + decoded_string_buffer.decode('utf-16'))
idc.set_cmt(stack_string_array_inital_ea, decoded_string_buffer.decode('utf-16'), 0);
idc.set_cmt(stack_string_array_inital_ea_next, decoded_string_buffer.hex(), 0);
except UnicodeDecodeError:
idc.set_cmt(stack_string_array_inital_ea_next, decoded_string_buffer.hex(), 0);
for xref in idautils.XrefsTo(stack_decoding_string_function_ea):
print(f"[*] Decode Function @ {hex(xref.frm)}")
stack_decode_func = xref.frm
(stack_string_array, stack_string_array_size) = get_stack_decode_parameters(stack_decode_func)
get_list_encoded_string_values(stack_string_array,stack_string_array_size)Majority of the decoded stack strings will resolve to data that can be interpreted as Unicode strings.
However, there is data that is not human readable encoded using this mechanism. For example, the following is the riid parameter for the CoCreateInstance function.
Anti-Debugging
Heap Corruption

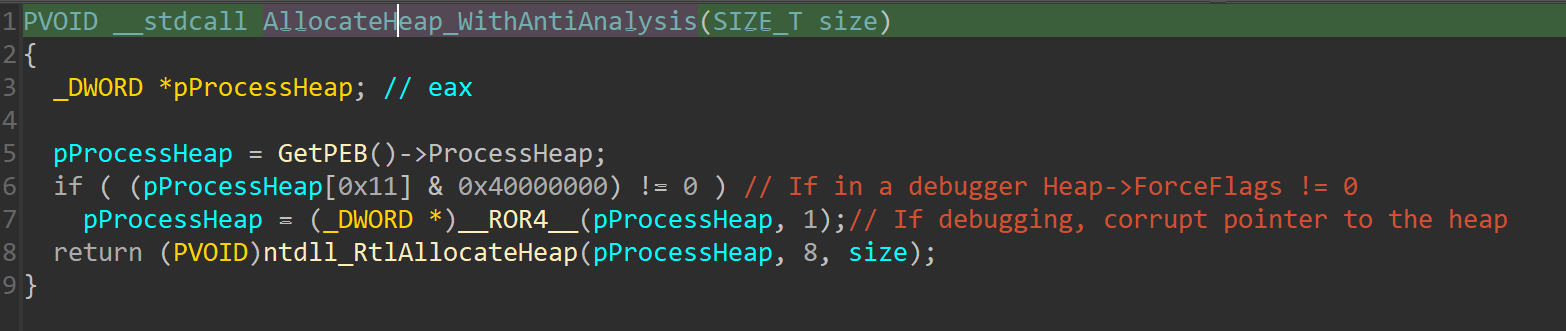

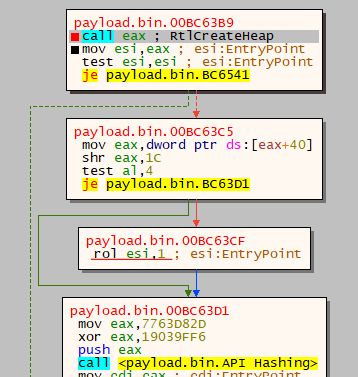

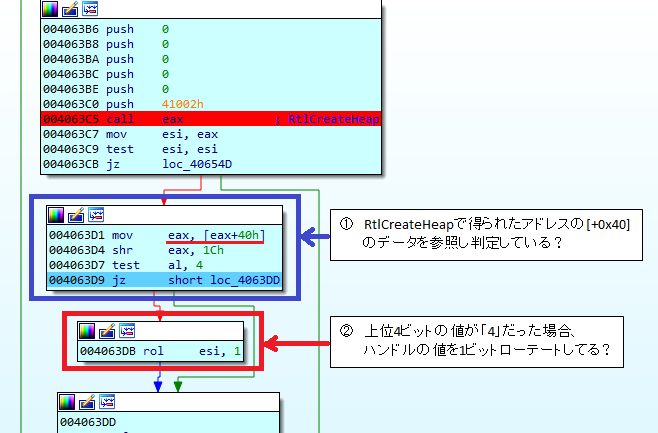

A wrapper function is used to invoke RtlAllocateHeap, before the call to this function the handle to the heap is acquired via the PEB and the Heap->ForceFlags is checked for a value other than 0 indicating the presence of a debugger.
If the presence of a debugger found the pointer to the heap is corrupted and RtlAllocateHeap will likely crash the process as a result.
Bilal Bakartepe
Sachiel
Detaching from Debugger

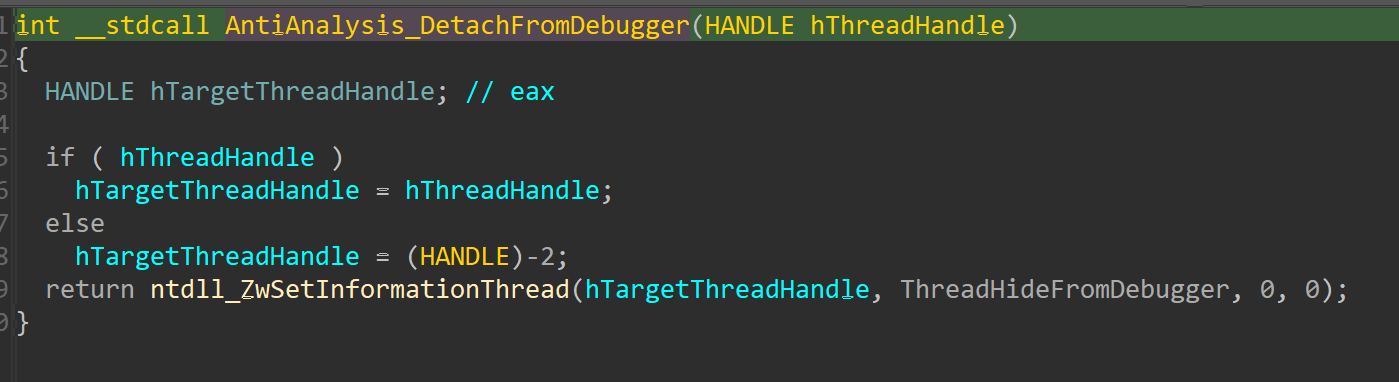

ZwSetInformationThread is use with the ThreadHideFromDebugger parameter when the process begins running, and on newly spawned encryption threads. This results in "enables suppression of debug events generated on the thread. Threads that do not generate debug events are essentially invisible to debuggers."
Preventing Debugger from Attaching

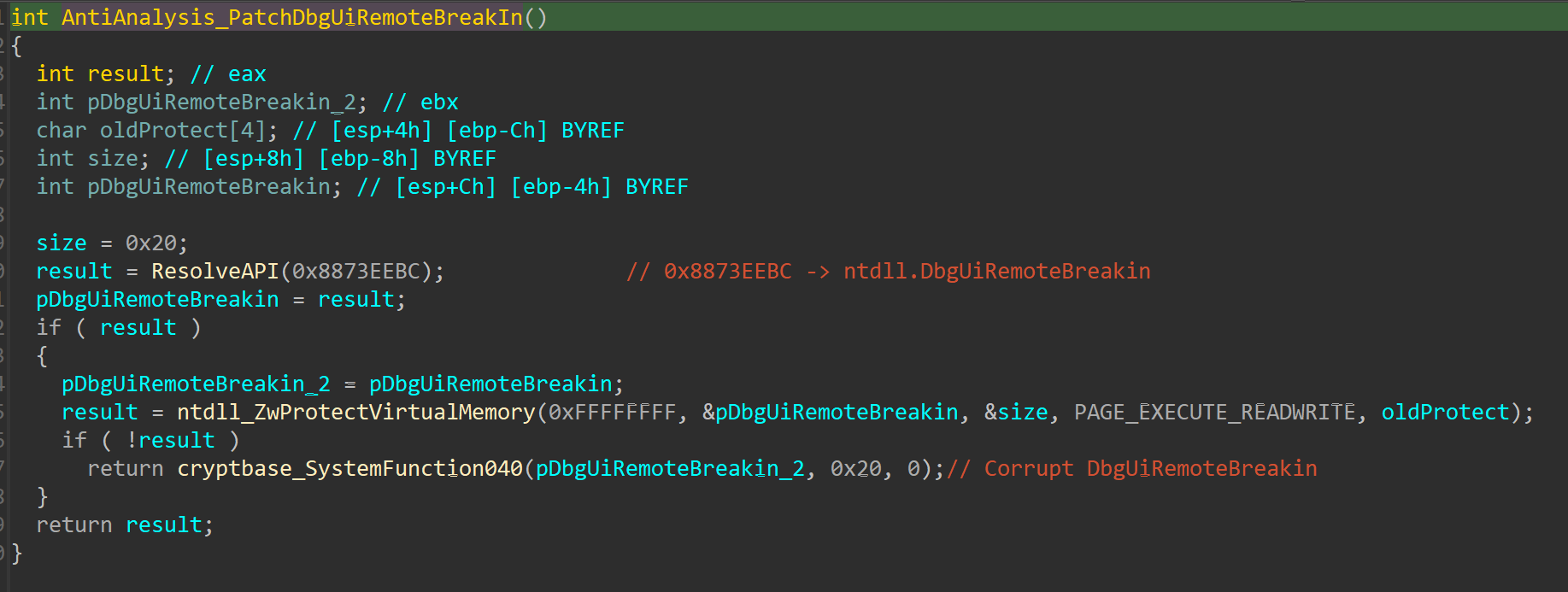

During the beginning DbgUiRemoteBreakin is corrupted by setting the first few bytes of the function to Read/Write, and using SystemFunction040 to encrypt the contents. As a result a debugger will not be able to attach itself to the process.
Lockbit Configuration Decryption
One of the first steps taken by Lockbit is to decode its embedded configuration file.
Helper Function Decoding
There are multiple steps taken by Lockbit to decode the embedded configuration file. The first phase is to extract helper functions that are encrypted and compressed within the .data section. These helper functions take the form of Assembly instructions that will facilitate the generation of XOR keys used to decrypt the configuration.

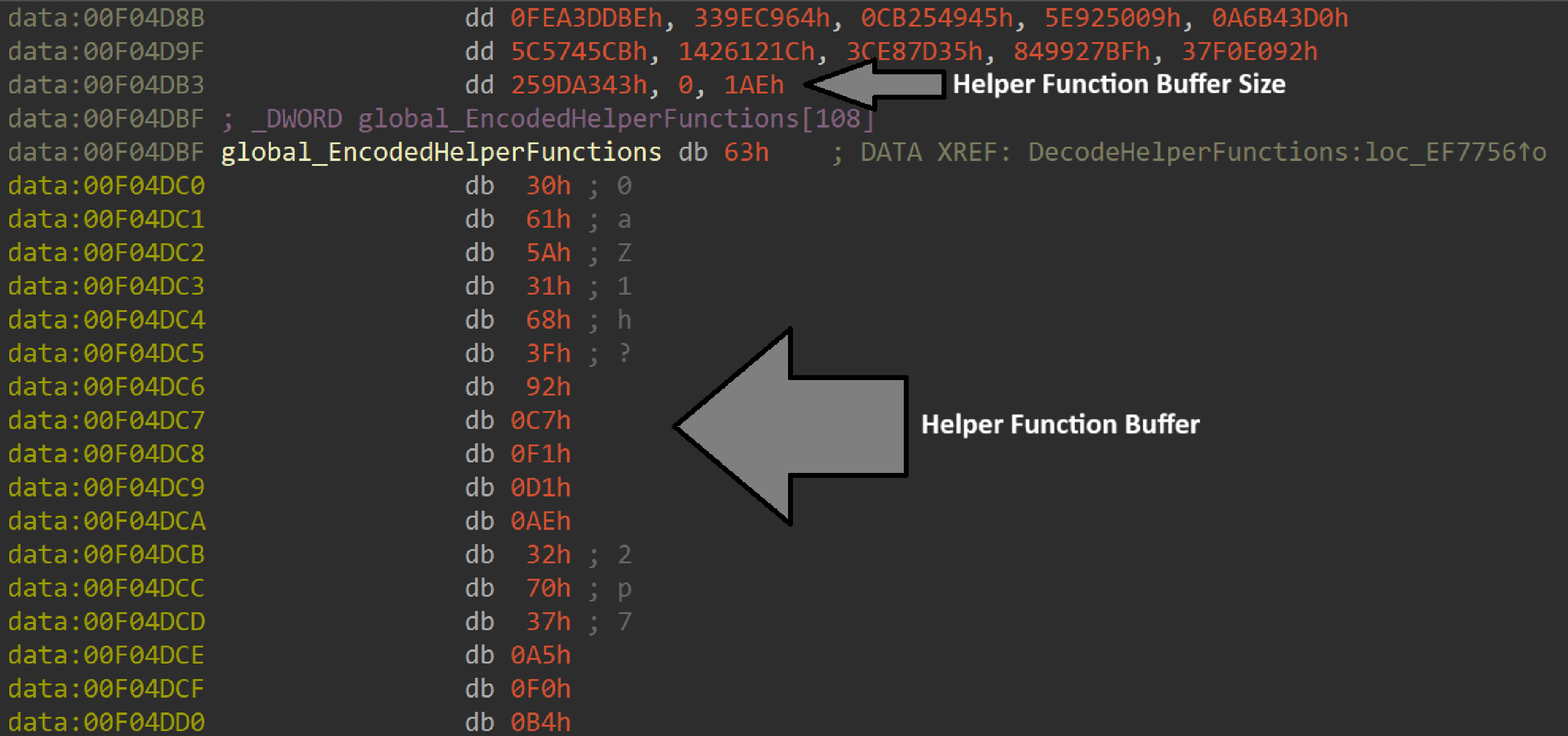

Note, that the size of the helper function buffer is stored in the DWORD right before it starts, in this case it is 0x1AE bytes in size.
In order to decrypt the helper function buffer each byte is XOR'd with a hardcoded key of 0x30. After the entire buffer is decrypted APLib is used to decompress the contents.
The most important steps is the fact that the helper function buffer has been decrypted and decompressed into a newly allocated buffer on the heap. Since the contents of the this buffer are executable assembly code Lockbit will be able to successfully execute when invoked.
In the end, a trampoline function is created in order to invoke the assembly code. This is the exact same process as used for functions resolved via API hashing.
The helper function that has been decoded in this phase will be used in the process of decoding the core configuration.

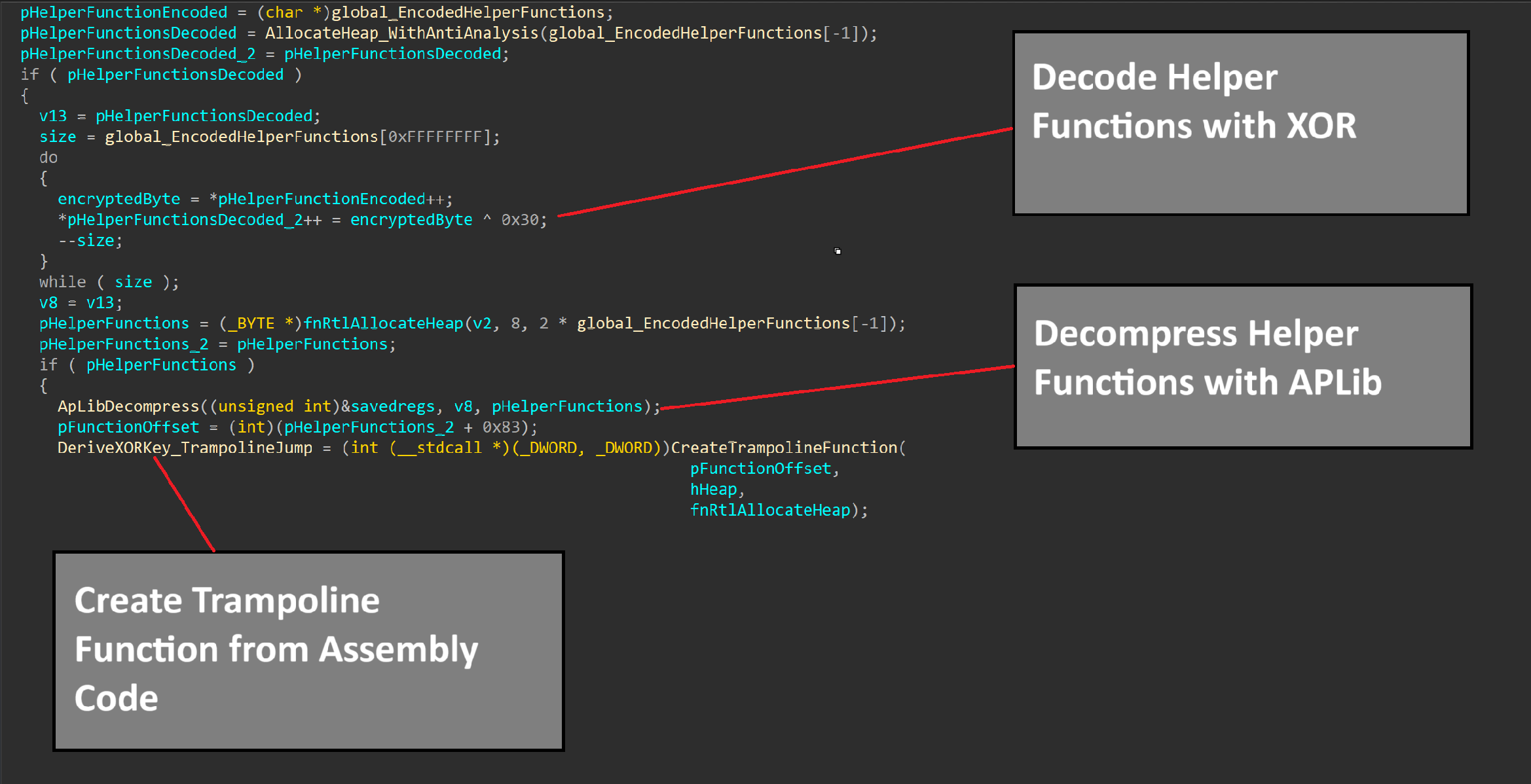

The following script was used in IDA in order to decrypt and decompress the helper functions. A new segment was created in IDA in order to write the assembly code to.
import struct
from binascii import crc32
from io import BytesIO
import idc
import idautils
# APLib Code Found on https://github.com/snemes/aplib
class APLib(object):
__slots__ = 'source', 'destination', 'tag', 'bitcount', 'strict'
def __init__(self, source, strict=True):
self.source = BytesIO(source)
self.destination = bytearray()
self.tag = 0
self.bitcount = 0
self.strict = bool(strict)
def getbit(self):
# check if tag is empty
self.bitcount -= 1
if self.bitcount < 0:
# load next tag
self.tag = ord(self.source.read(1))
self.bitcount = 7
# shift bit out of tag
bit = self.tag >> 7 & 1
self.tag <<= 1
return bit
def getgamma(self):
result = 1
# input gamma2-encoded bits
while True:
result = (result << 1) + self.getbit()
if not self.getbit():
break
return result
def depack(self):
r0 = -1
lwm = 0
done = False
try:
# first byte verbatim
self.destination += self.source.read(1)
# main decompression loop
while not done:
if self.getbit():
if self.getbit():
if self.getbit():
offs = 0
for _ in range(4):
offs = (offs << 1) + self.getbit()
if offs:
self.destination.append(self.destination[-offs])
else:
self.destination.append(0)
lwm = 0
else:
offs = ord(self.source.read(1))
length = 2 + (offs & 1)
offs >>= 1
if offs:
for _ in range(length):
self.destination.append(self.destination[-offs])
else:
done = True
r0 = offs
lwm = 1
else:
offs = self.getgamma()
if lwm == 0 and offs == 2:
offs = r0
length = self.getgamma()
for _ in range(length):
self.destination.append(self.destination[-offs])
else:
if lwm == 0:
offs -= 3
else:
offs -= 2
offs <<= 8
offs += ord(self.source.read(1))
length = self.getgamma()
if offs >= 32000:
length += 1
if offs >= 1280:
length += 1
if offs < 128:
length += 2
for _ in range(length):
self.destination.append(self.destination[-offs])
r0 = offs
lwm = 1
else:
self.destination += self.source.read(1)
lwm = 0
except (TypeError, IndexError):
if self.strict:
raise RuntimeError('aPLib decompression error')
return bytes(self.destination)
def pack(self):
raise NotImplementedError
# APLib Code Found on https://github.com/snemes/aplib
def decompress(data, strict=False):
packed_size = None
packed_crc = None
orig_size = None
orig_crc = None
if data.startswith(b'AP32') and len(data) >= 24:
# data has an aPLib header
header_size, packed_size, packed_crc, orig_size, orig_crc = struct.unpack_from('=IIIII', data, 4)
data = data[header_size : header_size + packed_size]
if strict:
if packed_size is not None and packed_size != len(data):
raise RuntimeError('Packed data size is incorrect')
if packed_crc is not None and packed_crc != crc32(data):
raise RuntimeError('Packed data checksum is incorrect')
result = APLib(data, strict=strict).depack()
if strict:
if orig_size is not None and orig_size != len(result):
raise RuntimeError('Unpacked data size is incorrect')
if orig_crc is not None and orig_crc != crc32(result):
raise RuntimeError('Unpacked data checksum is incorrect')
return result
original_config_offset = 0x00F04DBF # Offset to the encrypted and compressed helper functions
current_config_offset = original_config_offset
size = idc.get_wide_dword(original_config_offset - 4,)
print(hex(size))
# Decrypt Helper Functions with XOR
for byte in range(0,size):
current_byte = idc.get_bytes(current_config_offset, 1)
current_byte = int.from_bytes(current_byte)
current_byte = current_byte ^ 0x30
idc.patch_byte(current_config_offset, current_byte)
current_config_offset = current_config_offset + 1
# Decompress Helper Functions and Write to New Segment
decoded_bytes = idc.get_bytes(original_config_offset, size)
decompressed_bytes = decompress(decoded_bytes)
new_segment = 0x0F190000 # New Segemnt to write code to, this will store decrypted and decompressed assembly code
for index, byte in enumerate(decompressed_bytes):
idc.patch_byte(new_segment + index, byte)
IDAPython Script to Decode Helper Functions
Configuration Decoding

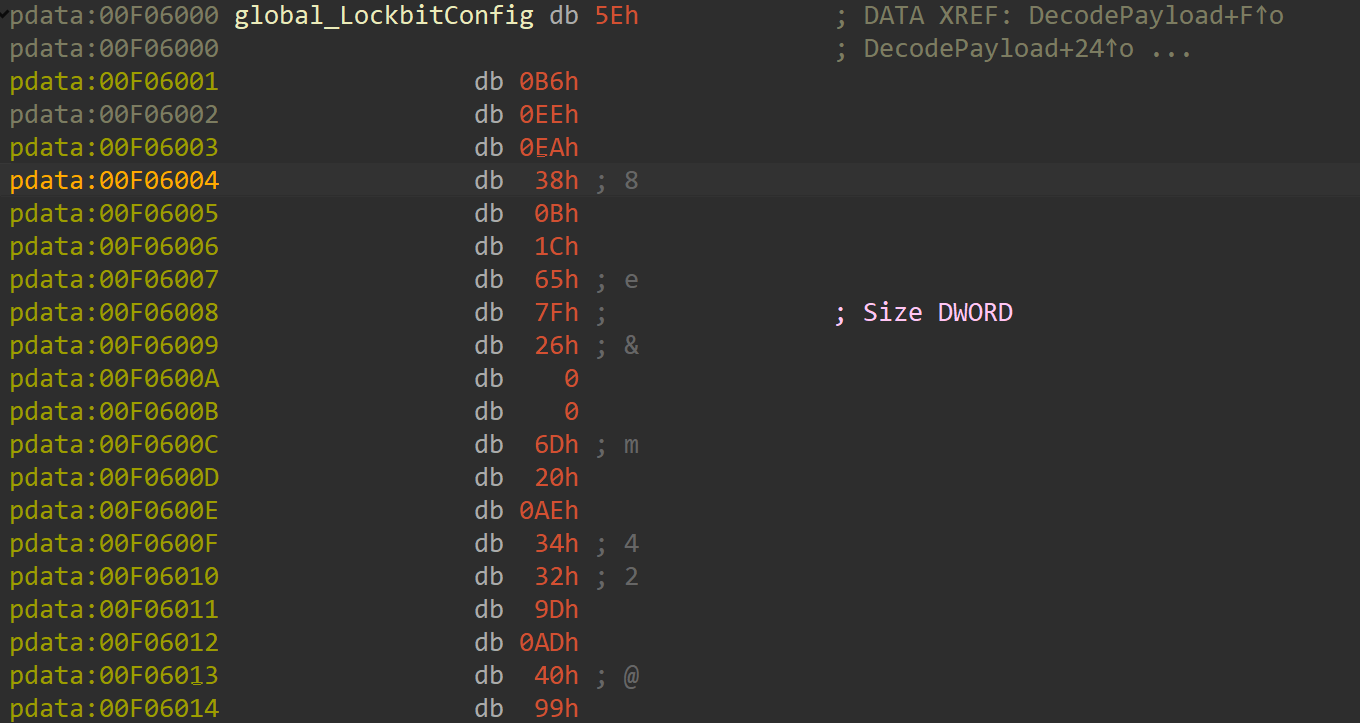

The configuration is stored in the .pdata section, the following summarizes the components of the configuration:
.pdata+0x0: First DWORD used to generate initial XOR key..pdata+0x4: Second DWORD used to generate initial XOR key..pdata+0x8: Size of configuration contents..pdata+0xC: Encrypted and compressed configuration contents.

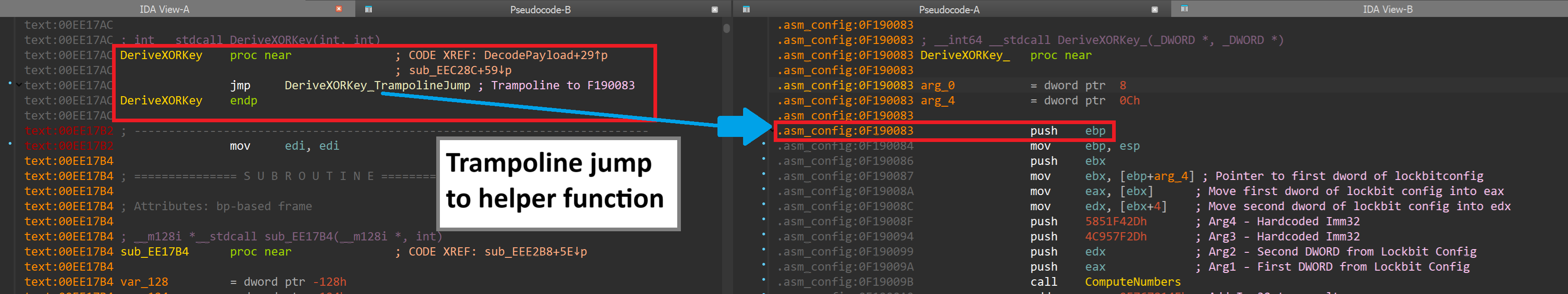

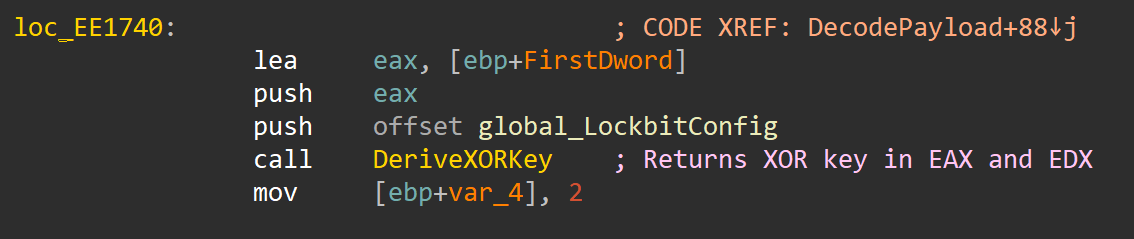

The DeriveXORKey function in this case is a call to the helper function that has been decoded in the previous step. Once called, it will return a value in eax and edx that will be utilized to decrypt the configuration. Note, the DeriveXORKey function depends on the first two 8 bytes of the configuration, as a result we can produce a deterministic value each time for the configuration.
The core of the decryption process is the derivation of XOR keys within the DeriveXORKey function. Once DeriveXORKey derives a key it is returned within as two separate values, in this case within the EAX and EDX registers.
As a reminder, the DeriveXORKey is the helper function that was decrypted in the prior step. Without the prior step there would be no way to generate the XOR keys required to decrypt the core configuration.
The Lockbit configuration is then decrypted by two DWORDs at a time using both of these XOR keys. Each DWORD is XOR'd with a specific byte within the DWORD.
This decryption scheme ensures that each byte is encrypted with a separate XOR key. In addition, it adds a level of complexity for the analyst to be able to determine the final algorithm and reimplement it.
To provide the best clarity behind the algorithm used for decryption reference the following code written in C which emulates the process:
#include <stdio.h>
#include <stdint.h>
#include <Windows.h>
#include "LockbitConfig.h"
#include "aplib.h"
DWORD32 MultiplyAndGetHigh(DWORD32 a, DWORD32 b) {
// Perform the multiplication, which results in a 64-bit result
DWORD64 result = (DWORD64)a * (DWORD64)b;
// Extract the higher 32 bits by shifting right
return (DWORD32)((result >> 32) & 0xFFFFFFFF); // Right shift by 32 bits
}
VOID ComputeNumbers(_In_ DWORD32 Arg1, _In_ DWORD32 Arg2, _In_ DWORD32 Arg3, _In_ DWORD32 Arg4, _Out_ PDWORD32 XORKey1, _Out_ PDWORD32 XORKey2) {
*XORKey1 = Arg1 * Arg3;
*XORKey2 = MultiplyAndGetHigh(Arg1, Arg3) + ((Arg3 * Arg2) + (Arg1 * Arg4));
}
// Value1 will first be pointer to first dword of config
// Value2 will first be pointer to second dword of config
void DeriveXORKey(_In_ PDWORD32 InputValue1, _In_ PDWORD32 InputValue2, _Out_ PDWORD32 XORKey1, _Out_ PDWORD32 XORKey2) {
/*
Compute the first round of XOR Keys
*/
DWORD Output1 = 0;
DWORD Output2 = 0;
ComputeNumbers(*InputValue1, *InputValue2, 0x4C957F2D, 0x5851F42D, &Output1, &Output2);
/*
Conduct permutations on the first round of XOR keys
*/
DWORD32 permutedArg3 = Output1 + 0x0F767814F;
DWORD32 carry = 0;
if (permutedArg3 < Output1 || permutedArg3 < 0x0F767814F) {
carry = 1;
}
// If previous add had carry flag set, add it to this calculation
DWORD32 permutedArg4 = Output2 + 0x14057B7E + carry;
/*
Updated values used for follow up DeriveXORKey calls
*/
*InputValue1 = permutedArg3;
*InputValue2 = permutedArg4;
/*
Compute second round of XOR keys and return
*/
ComputeNumbers(((PDWORD)global_LockbitConfig)[0], ((PDWORD)global_LockbitConfig)[1], permutedArg3, permutedArg4, &Output1, &Output2);
*XORKey1 = Output1;
*XORKey2 = Output2;
}
VOID DecodePayload(PBYTE pConfig, SIZE_T size) {
/*
These two values are initally set to the first and second DWORD from the Lockbit Conifg
After each DeriveXORKey execution they get updated with a permuted value, and are
passed to the following DeriveXORKey call.
*/
DWORD32 value1 = ((PDWORD)global_LockbitConfig)[0];
DWORD32 value2 = ((PDWORD)global_LockbitConfig)[1];
/*
The xorKey DWORD variables will receive XOR Keys from DeriveXORKey.
*/
DWORD32 xorKey1 = 0;
DWORD32 xorKey2 = 0;
SIZE_T DwordsToDecrypt = 2;
PBYTE pCurrentConfigOffset = pConfig;
SIZE_T configSizeCounter = size;
/*
Decode the config, the lower 16 bits will be used to decode one DWORD of the config.
Then the higher 16 bits will be used to decode another DWORD of the config.
*/
while (TRUE) {
DeriveXORKey(&value1, &value2, &xorKey1, &xorKey2);
for (SIZE_T j = 0; j < 2; j++) {
// XOR with LOWER_8_BITS(xorKey1) - AL of EAX
*pCurrentConfigOffset = *pCurrentConfigOffset ^ (xorKey1 & 0x000000FF);
pCurrentConfigOffset++;
configSizeCounter--;
if (configSizeCounter == 0) {
goto END;
}
// XOR with HIGHER_8_BITS(xorKey2) - DH of EDX
*pCurrentConfigOffset = *pCurrentConfigOffset ^ ((xorKey2 >> 8) & 0x000000FF);
pCurrentConfigOffset++;
configSizeCounter--;
if (configSizeCounter == 0) {
goto END;
}
// XOR with HIGHER_8_BITS(xorKey1) - AH of EAX
*pCurrentConfigOffset = *pCurrentConfigOffset ^ ((xorKey1 >> 8) & 0x000000FF);
pCurrentConfigOffset++;
configSizeCounter--;
if (configSizeCounter == 0) {
goto END;
}
// XOR with LOWER_8_BITS(xorKey2) - DL of EAX
*pCurrentConfigOffset = *pCurrentConfigOffset ^ (xorKey2 & 0x000000FF);
pCurrentConfigOffset++;
configSizeCounter--;
if (configSizeCounter == 0) {
goto END;
}
// Shift bits right by 0x10
// This ensures we now use the higher 16 bits for the next loop around
xorKey1 = xorKey1 >> 0x10;
xorKey2 = xorKey2 >> 0x10;
}
}
END:
return;
}
int main()
{
/*
Allocate new heap space for the decoded config
*/
SIZE_T configSize = ((PDWORD)global_LockbitConfig)[2];
PBYTE pLockbitConfig = (PBYTE)HeapAlloc(GetProcessHeap(), HEAP_ZERO_MEMORY, configSize);
if (pLockbitConfig == NULL) {
return -1;
}
memcpy(pLockbitConfig, global_LockbitConfig + 0xC, configSize); // Encoded config starts at global_LockbitConfig + 0xC
/*
Decrypt the config
*/
DecodePayload(pLockbitConfig, configSize);
/*
Decompress Config with APLib
*/
PBYTE pDecompressedConfig = (PBYTE)HeapAlloc(GetProcessHeap(), HEAP_ZERO_MEMORY, configSize * 4);
if (pDecompressedConfig == NULL) {
return -1;
}
aP_depack_asm(pLockbitConfig, pDecompressedConfig);
return 0;
}
C Implementation of Lockbit 3.0 Configuration Decoding
Configuration Parsing

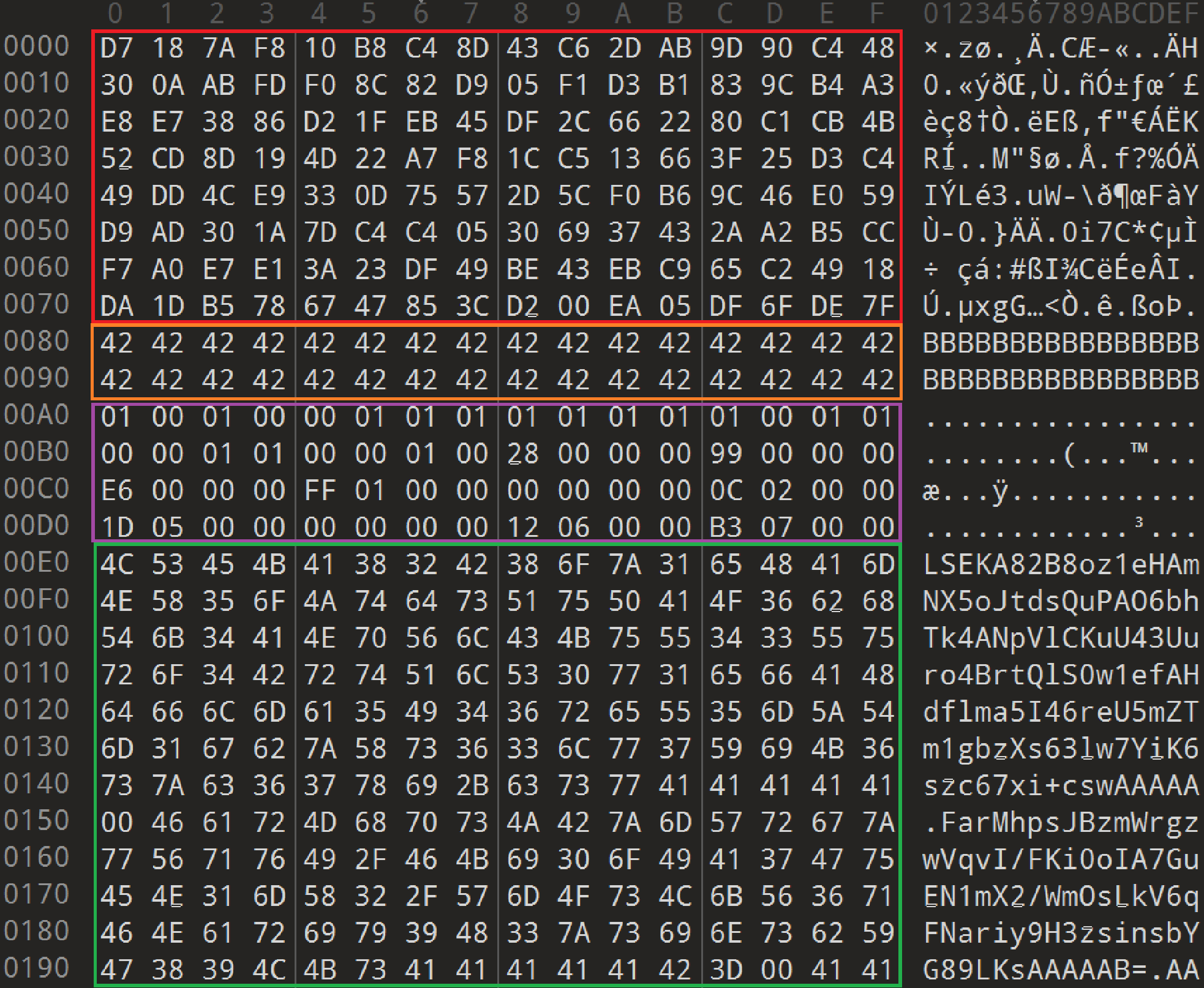

Once the configuration is decrypted and decompressed various parts of the buffer are interpreted and associated with its corresponding data that is stored.
- Red: 1024-bit RSA Key
- Orange: UID and KeyID
- Purple: Boolean values indicating to enable or disable functionality
- Green: Base64 encoded configurations separated by NULL terminators.
The following summarizes what is included within the Base64 encoded configuration sections:
Folder Exclusion List: List of folders to be excluded stored as a string hash.
Filename Exclusion List: List of filenames to be excluded stored as a string hash.
File Extension Exclusion List: File extensions to be exclude stored as a string hash.
Computer Hostname Exclusion List: Computer hostnames to exclude stored in plaintext.
Process Termination List: List of process names to terminate stored in plaintext.
Service Termination List: List of services to terminate stored in plaintext.
User Account Impersonation List: List of accounts used to run the ransomware under.
Ransom Note: The ransom note.
Pre-Encryption Checks and Anti-Forensics
Language Check

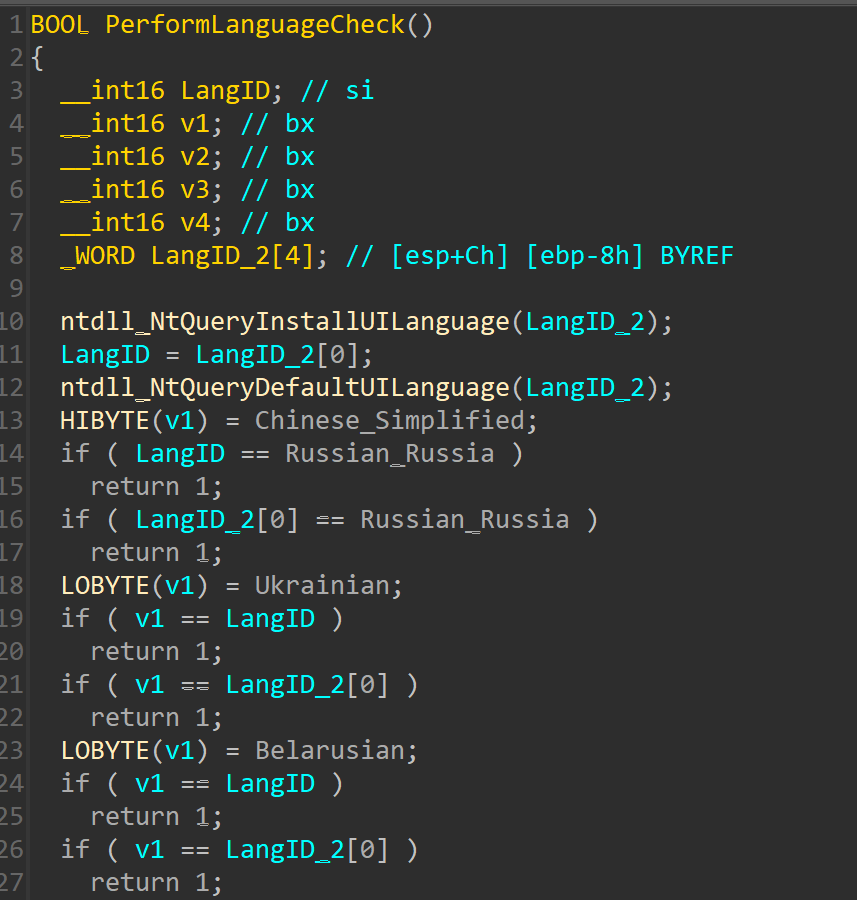

Language checks are conducted if the LanguageCheck flag in the configuration is enabled, it is conducted with the NtQueryDefaultUILanage function.
A full list of languages checked are below:
| Language |
|---|
| Russian |
| Ukrainian |
| Belarusian |
| Tajik |
| Armenian |
| Azerbaijani |
| Georgian |
| Kazakh |
| Kyrgyz |
| Turkmen |
| Uzbek |
| Tatar |
Process Deletion
During execution Lockbit will start a function as a thread responsible for terminating blacklisted processes.

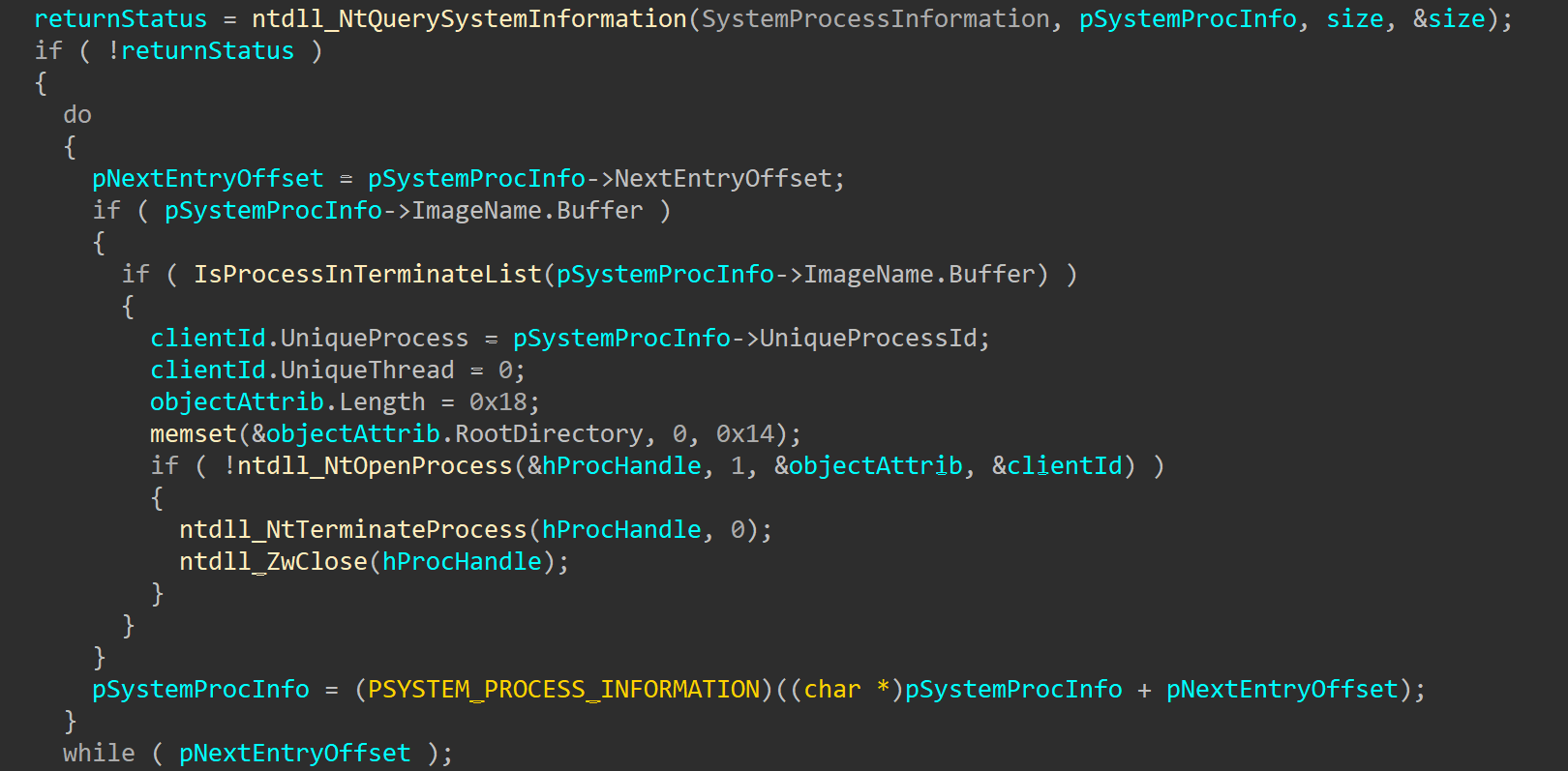

This function will utilize NtQuerySystemInformation to enumerate each process and compare to a predefined list of processes, if there are any matches a handle will be opened to the process and it will be terminated.

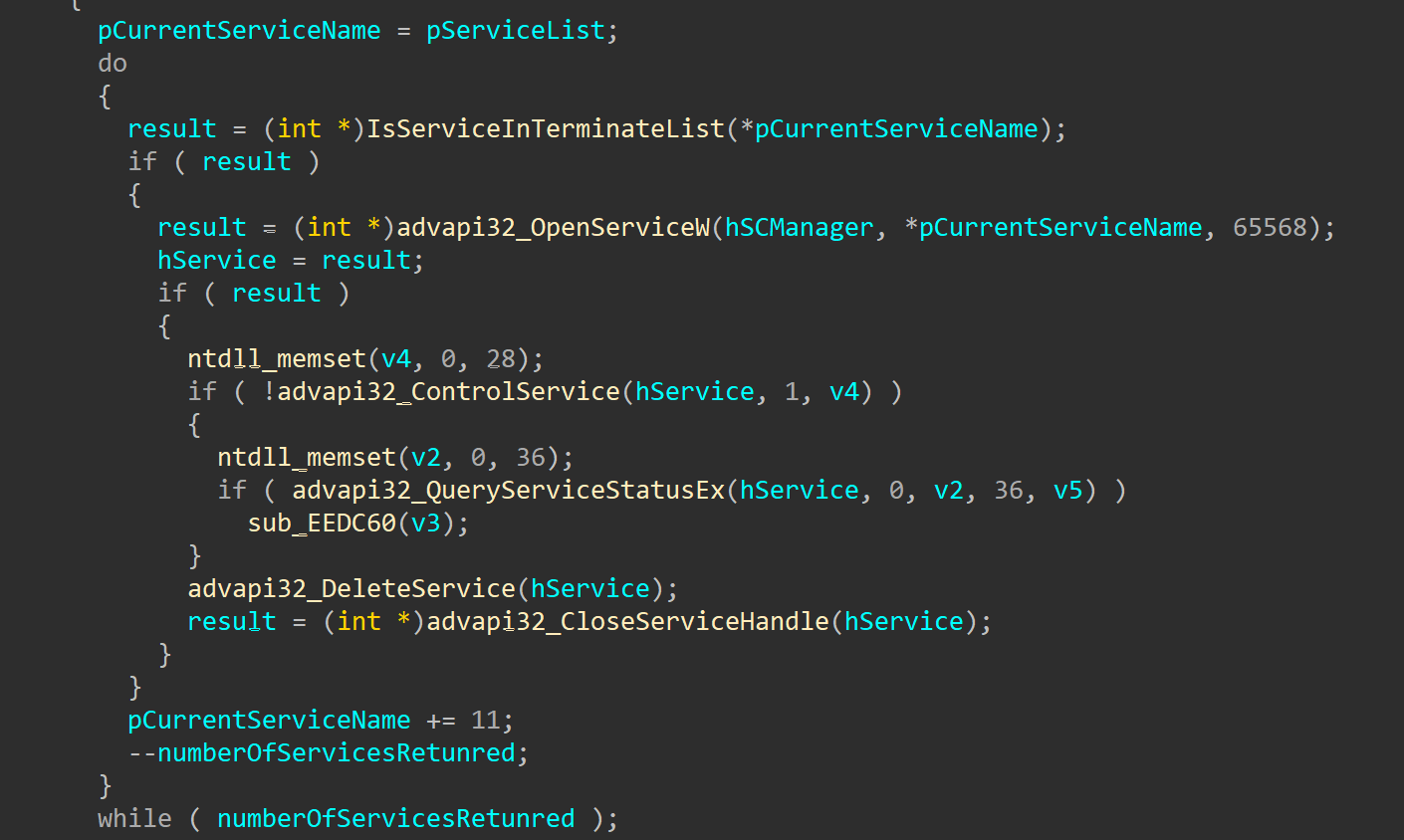

Service Deletion

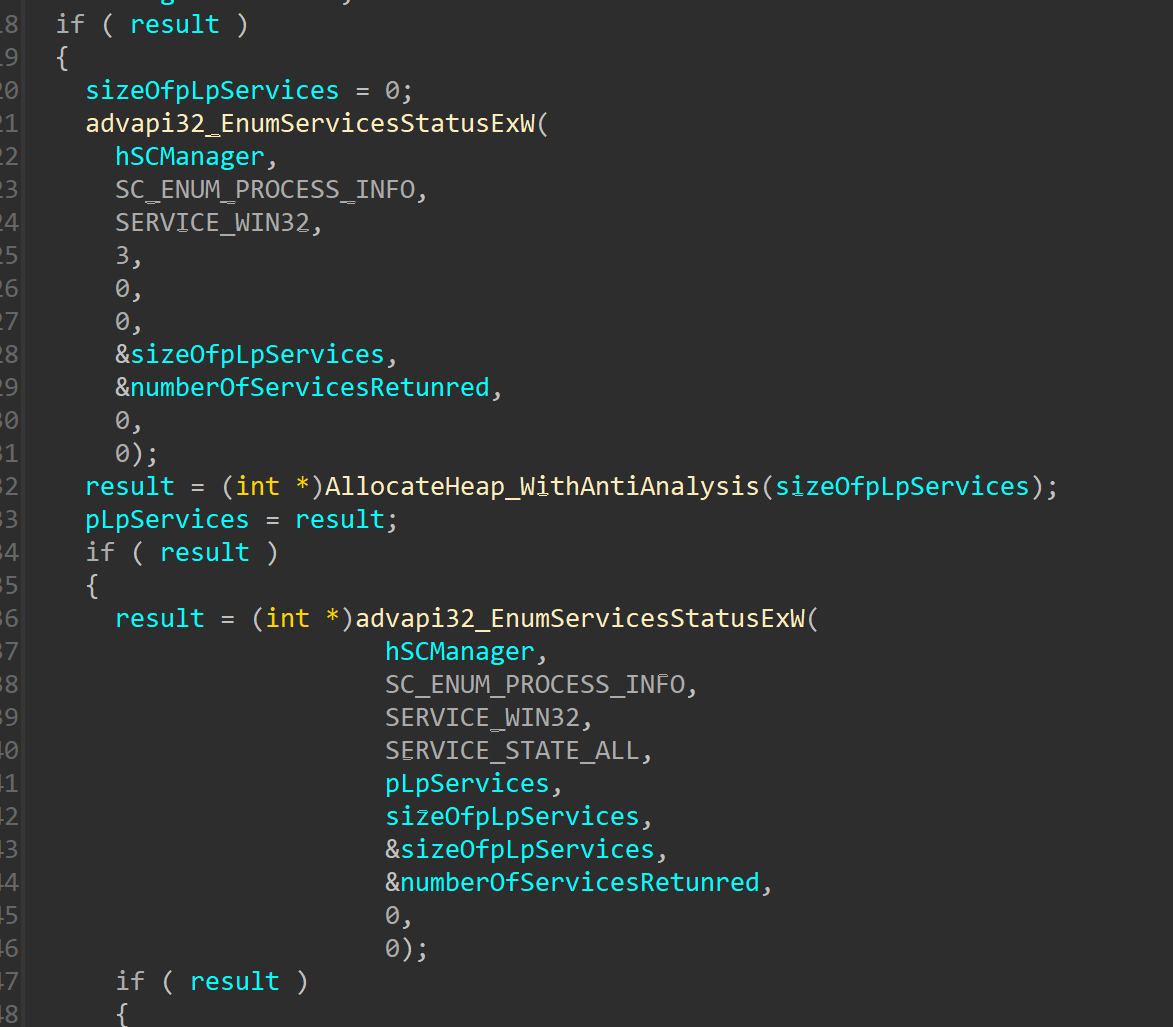

If the terminate service flag is set, Lockbit will terminate a predefined list of services. First it will construct a list of services that are present on the system via EnumServicesStatusExW.
After, it will loop through each service and compare to a predefined list. If there is a match that service will be stopped and deleted. [ CONFIRM]

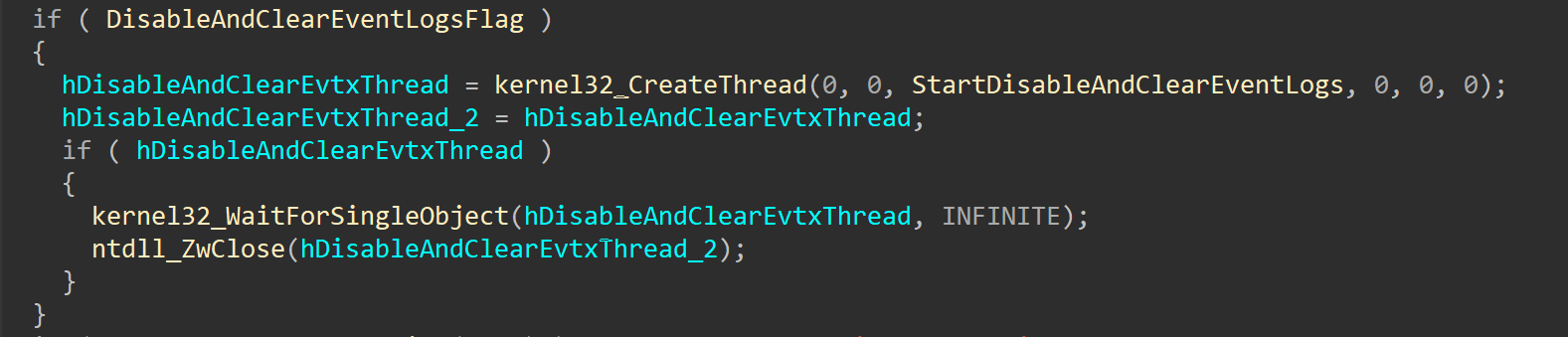

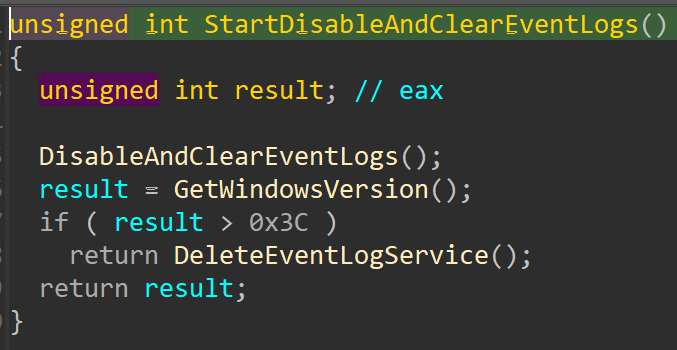

Clearing Event Logs
Creating a Mutex
A Mutex name will be generated based on the RSA key embedded in the Lockbit configuration.
The mutex name will take the form of Global%.8x%.8x%.8x%.8x. after hashing the RSA key with MD5, performing mutations on the result, and then hashing it with MD4.
Privilege Escalation
Impersonate as Other User

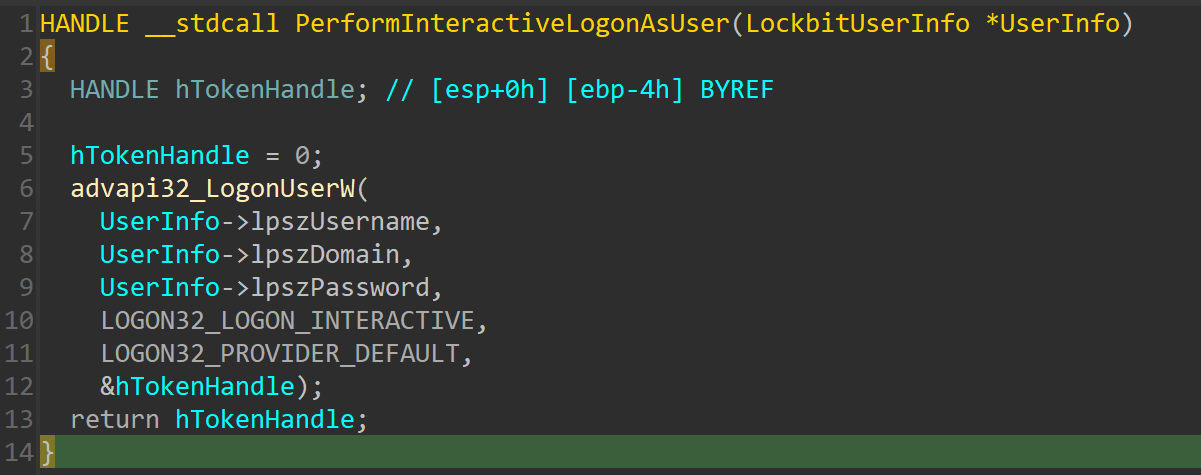

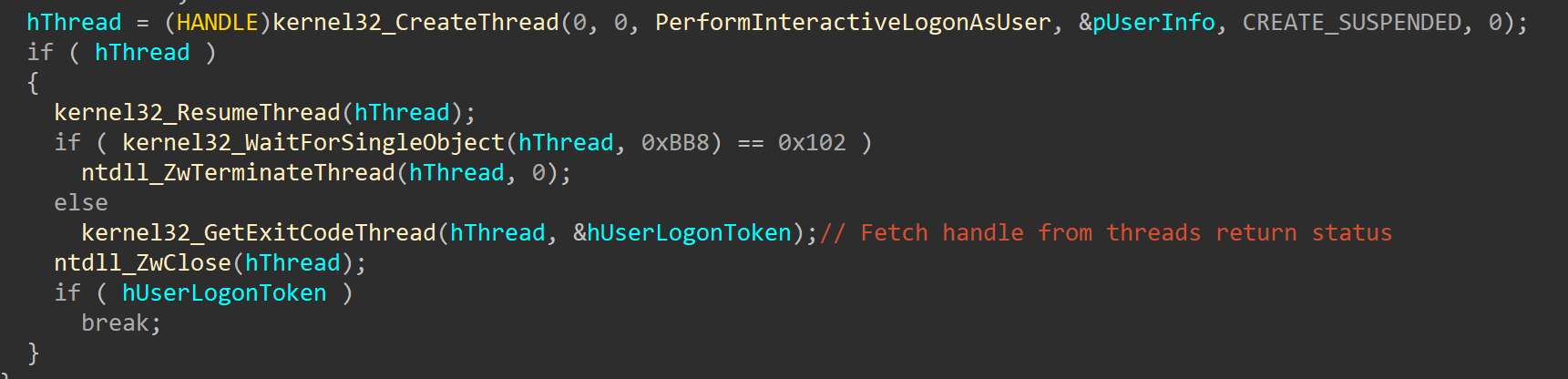

Within the Lockbit configuration multiple user accounts in the form of username and passwords can be stored. These credentials can be passed to LogonUserW in order to retrieve a token representing the user.
Once the token of a user is retrieved it is stored in a global variable that is used at a later point in time.
Checking Administrator Rights
UAC Bypass

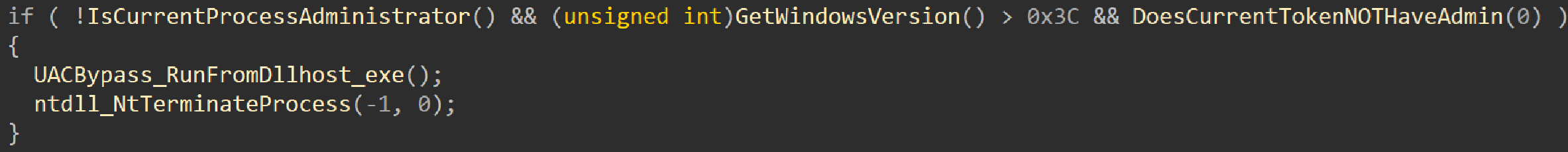

If the current process is not running as administrator, and the current Windows version is Vita or above a UAC bypass that uses the CMSTPLUA COM interface will be used, as also mentioned by this Google blog post.
Process Privilege Enable

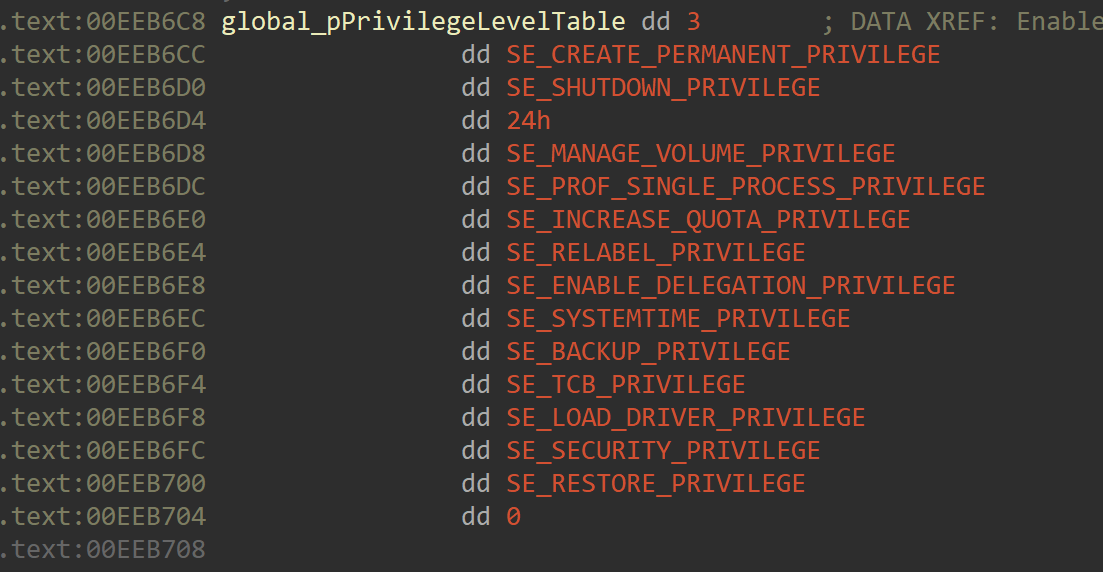

In the .text section there is a array of LUID's representing various privileges.

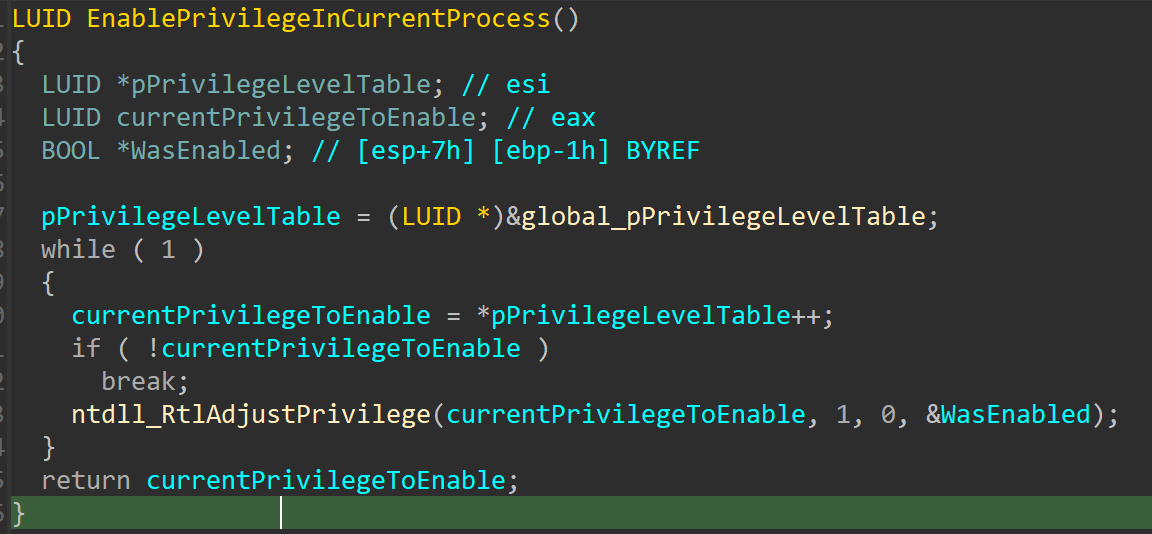

Lockbit will loop through this table and enable each privileges in the process via RtlAdjustPrivilege.
References
References used to learn and assist with my analysis:
Chuong Dong
Nhân Huỳnh
소만사
